Professional 3D Products

SHINING 3D has been developing 3D digitizing technologies for more than 10 years and is committed to promoting 3D scanning technologies at a large scale, as well as improving the efficiency of high-quality 3D modeling. From high-end 3D scanners for professional industries to entry-level 3D scanners for general purpose 3D modeling, SHINING 3D makes“3D Scan – Intelligent Design – 3D Print” solutions accessible to all.

Industries: Aerospace, Automotive, Industrial Manufacturing, Art & Architecture, Healthcare, Education, and other Emerging Industries.

Applications: Reverse Engineering, Product Development, Computer Graphics, Virtual Display, VR/AR, 3D Data Archiving, Digital Diagnosis, and more.

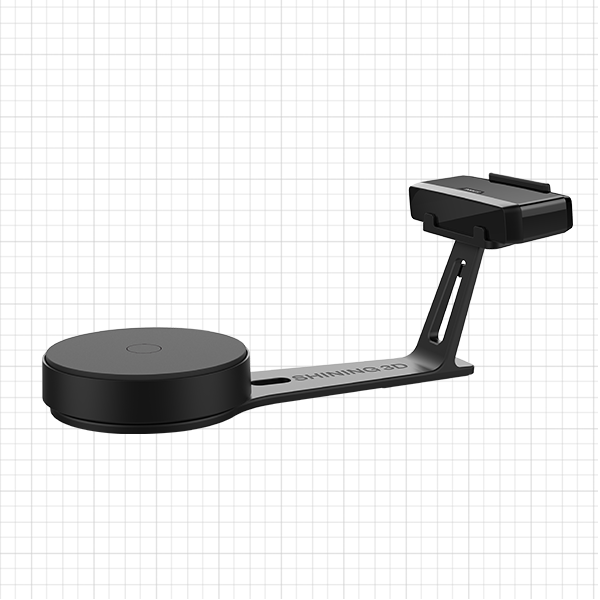

EinScan-SE

More detail

Watch Video :

Scan Mode	Fixed Scan with Turntable	Fixed Scan without Turntable
Mode of Alignment	Feature; Manual; Turntable	Feature; Manual
Single Shot Accuracy	≤0.1 mm
Minimum Scan Volume	30 × 30 × 30 mm
Maximum Scan Volume	200×200×200 mm	700×700×700 mm
Single Scan Range	200×150 mm
Scan Speed	Single Shot<1 s
Point Distance	0.17 mm ~ 0.2 mm
Texture	Yes
File Format	OBJ, STL, ASC, PLY, 3MF
Camera Resolution	1.3 Mega Pixels
Light Source	White Light
Working Distance	290 ~ 480 mm
Computer Requirements (Required)	USB:1 ×USB 2.0 or 3.0; OS: Win10 (64 bit); CPU: Dual-core i5 ; RAM: 8G
Computer Requirements (Recommended)	Graphics card: Nvidia series;Graphics memory > 1G
Net Weight	2.5 kg
Dimension	570×210×210 mm
Power Supply	40 w
Input Voltage	DC：12 v, 3.33 A
Calibration Board	Standard
Turntable	Standard
Load Capacity of Turntable	5 kg

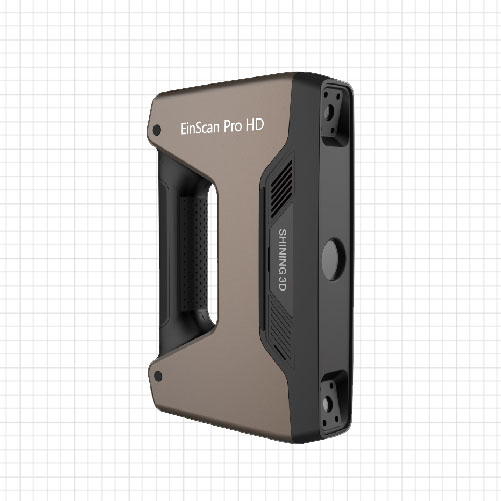

EinScan Pro HD

More detail

VIDEO PLAY HERE !!!

Scan Mode	Handheld HD Scan	Handheld Rapid Scan	Fixed Scan with Turntable (with Add-on: Industrial Pack)	Fixed Scan without Turntable (with Add-on: Industrial Pack)
Scan Accuracy	up to 0.045 mm	up to 0.1 mm	0.04 mm(single shot accuracy)	0.04 mm(single shot accuracy)
Volumetric Accuracy*	0.3 mm/m (Markers Alignment)	0.3 mm/m (Markers Alignment)	/	/
Scan Speed	10 frames/s; 3,000,000 points/s	30 frames/s; 1,500,000 points/s	Single Scan＜0.5s	Single Scan＜0.5s
Point Distance	0.2 mm-3 mm	0.25 mm-3 mm	0.24 mm	0.24 mm
Single Scan Range	209160 mm——310240 mm
Depth of Field	±100 mm
Working Distance	510 mm
Light Source	LED
Align Mode	Marker Alignment Feature Alignment[2], Hybrid Alignment[3]	Marker Alignment, Texture Alignment[4], Feature Alignment, Hybrid Alignment	Turntable Coded Targets, Feature, Markers, Manual Alignment	Markers, Feature, Manual Alignment
Texture Scan	Yes (with Add-on: Color Pack)	Yes (with Add-on: Color Pack)	Yes (with Add-on: Color Pack)	Yes (with Add-on: Color Pack)
Outdoor Operation	Set up the shelter or cover to avoid direct sunlight
Special Scan Object	For the transparent, highly reflective or some dark objects, please spray powder before scanning
Software Included	ExScan Pro, Solid Edge SHINING 3D Edition
Output Formats	OBJ; STL; ASC; PLY; P3 ; 3MF
Scanner Body Weight	1.25kg (include the USB3.0 cable)
Operating Temperature Range	0-40℃
Operating Humidity Range	10-90%
Supported OS	Win10,(64bit)
Recommended Configuration	Graphics card: NVIDIA GTX1080 and higher; video memory: >4G, processor: I7-8700, memory: 64G; interface: high-speed USB 3.0
Required Configuration	Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G
[1]. Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.3mm per 100cm. The conclusion is obtained by measuring the center of sphere under marker alignment. [2]. Select this alignment when scanning objects with rich geometrical features on the surface. [3]. Hybrid alignment means marker alignment and feature alignment can be switched automatically. [4]. This alignment needs Color Pack assisting, and requires rich color texture information on the surface of the object. SHINING 3D reserves the right to explain any alteration of the specifications and pictures. Please refer to einscan.com to find more information.

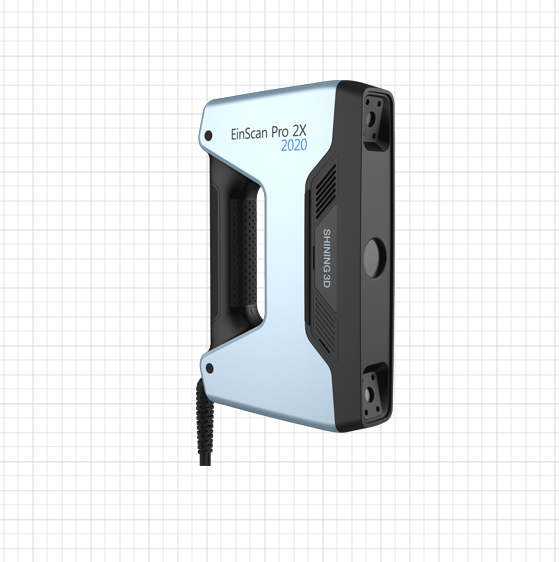

EinScan Pro 2X 3D Scanner

More detail

VIDEO PLAY HERE !!!

Scan Mode	Handheld HD Scan	Handheld Rapid Scan	Fixed Scan with Turntable (with Add-on: Industrial Pack)	Fixed Scan without Turntable (with Add-on: Industrial Pack)
Scan Accuracy	up to 0.045 mm	up to 0.1 mm	0.04 mm(single shot accuracy)	0.04 mm(single shot accuracy)
Volumetric Accuracy*	0.3 mm/m (Markers Alignment)	0.3 mm/m (Markers Alignment)	/	/
Scan Speed	10 fps 3,000,000 points/s	30 fps1,500,000 points/s	Single Scan＜1s	Single Scan＜1s
Point Distance	0.2 mm-2 mm	0.2 mm-2 mm	0.16 mm	0.16 mm
Single Scan Range	150120 mm — 250200 mm
Depth of Field	±100 mm
Working Distance	400 mm
Light Source	LED
Align Mode	Marker Alignment, Feature Alignment [3], Hybrid Alignment [4]	Marker Alignment, Texture Alignment [2], Feature Alignment [3], Hybrid Alignment [4]	Turntable Coded Targets, Feature, Markers, Manual Alignment	Markers, Feature, Manual Alignment
Texture Scan	Yes (with Add-on: Color Pack)	Yes (with Add-on: Color Pack)	Yes (with Add-on: Color Pack)	Yes (with Add-on: Color Pack)
Outdoor Operation	Set up the shelter or cover to avoid direct sunlight
Special Objects for Scanning	For the transparent, highly reflective or some dark objects, please spray powder before scanning
Printable Data Output	Able to export watertight 3D model directly to 3D printing
Output Formats	OBJ; STL; ASC; PLY; P3 ; 3MF
Scanner Body Weight	1.13kg (include the USB3.0 cable)
Supported OS	Win10, 64bit
Recommended Configuration	Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GTX 1080；video memory: ≥4G; processor: I7-8700 or higher; memory: ≥64G; interface: high-speed USB 3.0
Required Configuration	Graphics card: Equal or higher than NVIDIA Quadro card P1000 or NVIDIA GTX660; processor: Intel (R) Xeon E31230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G
[1]. Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.3mm per 100cm. The conclusion is obtained by measuring the center of sphere under marker alignment. [2]. This alignment needs Color Pack assisting, and requires rich color texture information on the surface of the object. [3]. Select this alignment when scanning objects with rich geometrical features on the surface. [4]. Hybrid alignment means marker alignment and feature alignment can be switched automatically.SHINING 3D reserves the right to explain any alteration of the specifications and pictures. Please refer to einscan.com to find more info

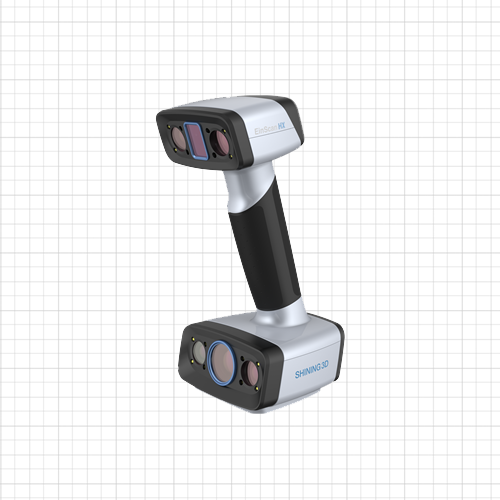

EinScan HX

More detail

Scan Mode	Rapid Scan	Laser Scan
Scan Accuracy	Up to 0.05mm	Up to 0.04mm
Volumetric Accuracy*	0.05+0.1mm/m	0.04+0.06mm/m
Scan Speed	1,200,000 points/s 20FPS	480,000 points/s 55FPS
Camera Frame Rate	55FPS	55FPS
Align Mode	Feature Alignment、Markers Alignment、Texture Alignment、Hybrid Alignment	Markers Alignment
Working Distance	470mm	470mm
Depth of Field	200mm-700mm	350mm-610mm
Max FOV	420mm*440mm	380mm*400mm
Point Distance	0.25mm-3mm	0.05mm-3mm
Light Source	Blue LED	7 Blue Laser Crosses
Safety	Eye-safe	Class I（Eye-safe）
Built-in Color Camera	Yes
Texture Scan	Yes	No
Connection Standard	USB3.0
Output Formats	OBJ;STL;ASC;PLY;P3;3MF
Dimensions	108mmx110mmx237mm
Weight	710g
Operating Temperature Range	0-40℃
Operating Humidity Range	10-90%
Certifications	CE，FCC，ROHS，WEEE，KC
Recommended Configuration	OS：Win10，64 bit；Graphics card: NVIDIA GTX/RTX series cards，higher or equal to GTX 1080；Video memory：≥4G；Processor：I7-8700；Memory：≥32GB

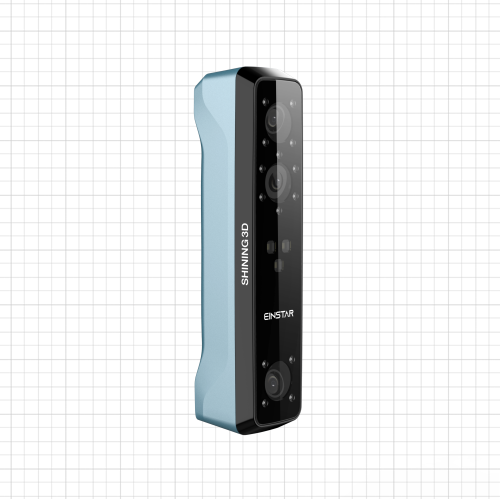

EinStar

More detail

Scan Mode	Fixed Scan with Turntable	Fixed Scan without Turntable
Mode of Alignment	Feature; Manual; Turntable	Feature; Manual
Single Shot Accuracy	≤0.1 mm
Minimum Scan Volume	30 × 30 × 30 mm
Maximum Scan Volume	200×200×200 mm	700×700×700 mm
Single Scan Range	200×150 mm
Scan Speed	Single Shot<1 s
Point Distance	0.17 mm ~ 0.2 mm
Texture	Yes
File Format	OBJ, STL, ASC, PLY, 3MF
Camera Resolution	1.3 Mega Pixels
Light Source	White Light
Working Distance	290 ~ 480 mm
Computer Requirements (Required)	USB:1 ×USB 2.0 or 3.0; OS: Win10 (64 bit); CPU: Dual-core i5 ; RAM: 8G
Computer Requirements (Recommended)	Graphics card: Nvidia series;Graphics memory > 1G
Net Weight	2.5 kg
Dimension	570×210×210 mm
Power Supply	40 w
Input Voltage	DC：12 v, 3.33 A
Calibration Board	Standard
Turntable	Standard
Load Capacity of Turntable	5 kg

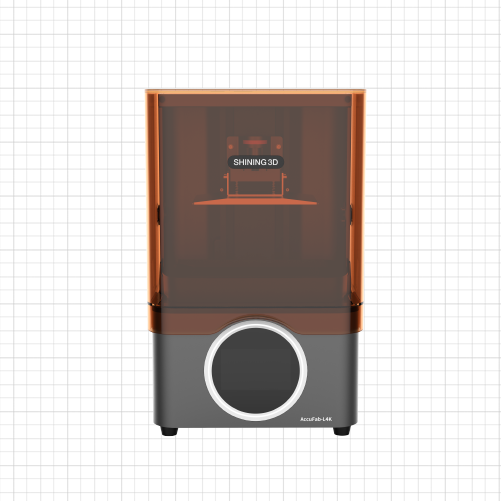

AccuFab-L4K | 4K RESIN 3D PRINTER

A high-precision resin 3D printer that improves prototyping efficiency and shortens the new product development lifecycle.

Features
Unparalleled Accuracy

Accurate Precise
IT7- level printing accuracy, to ensure the printing size is consistent with the design size.

Outstanding Uniformity
High luminance uniformity achieves up to 90%.
Provides not only the possibility to obtain features, smaller than a pixel, but also superior surface finish.

Multiple Material Options
Shining Engineering covers a wide range of materials for engineering 3D printing applications, includes Standard Resin, Bio-compatable Resin and Water Washable Resin, provides great size accuracy, surface quality, and low deformation rate.

Certified 3rd Party Material
Shining 3D partners with industry leading brands in engineering material, providing more possibility and flexibility.

More detail

Resolution	3840×2400
Pixel Size	0.05mm
Wavelength	405mm
Light Intensity	3mw/cm^2
Light Source	UV LED + LCD
Print Size	192mm × 120mm × 180mm
Print Speed	10～50mm/h
Tolerance	±0.05mm
Layer Thickenss	0.025 / 0.05 / 0.075 / 0.1 mm
Working Temperature	20～30℃
Working Humidity	30～70%
Interface	5”touch screen
Connection	Wi-Fi/Enterenet/Thumdrive
Weight	19kg
Printer Dimensions	360mm × 360mm × 530mm
SHINING 3D Engineering Material	White Material：TR01、S1；Yellow Material：DM12； Transparent Material：SG01；Black Material：S2； Washable Material：W1
BASF Engineering Material	Durable Material：ST45、ST80；Rigid Material：RG35、RG50； Flexible Material：FL60、EL150
Third Party Certified Resin	Third party resin materials approved by SHINING 3D, also can be used in AccuFab-L4K High-Precision Stereolithography 3D Printer
